The E-valve system consists of intelligent API valves, subsea valve detector, intelligent manhole covers, etc. Through E-valve system, electronic fence, and liquid level fluctuation monitoring, the process monitoring and abnormal alarm of all key valve states during the entire process of tank truck delivery can be achieved, and real-time data information and alarm information can be sent to the cloud platform by the tank truck data acquisition equipment.
E-valve System
-
Through the E-valve system, electronic fence, and liquid level fluctuation monitoring, the process monitoring and abnormal alarm of all key valve states during the entire process of tank truck delivery can be achieved, and real-time data information and alarm information can be sent to the cloud platform management system by the vehicle data acquisition device.
-
Intelligent API Valve
The intelligent API valve integrates switches and oil-water recognition sensors inside, which can monitor the valve's switch status in real-time and detect any abnormal fuel or water content alarms inside the pipeline.
-

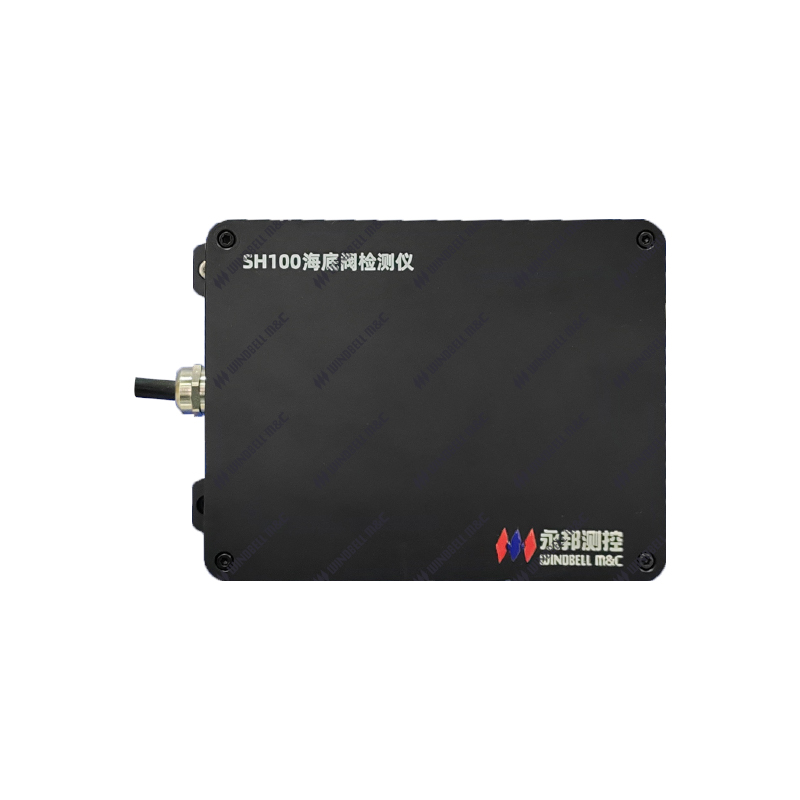

Subsea Valve Detector
The subsea valve detector is used to monitor the opening and closing status of the subsea valve. When the subsea valve is detected to be open and the intelligent API valve detects no liquid, it is determined that the oil has been discharged and emptied.
-

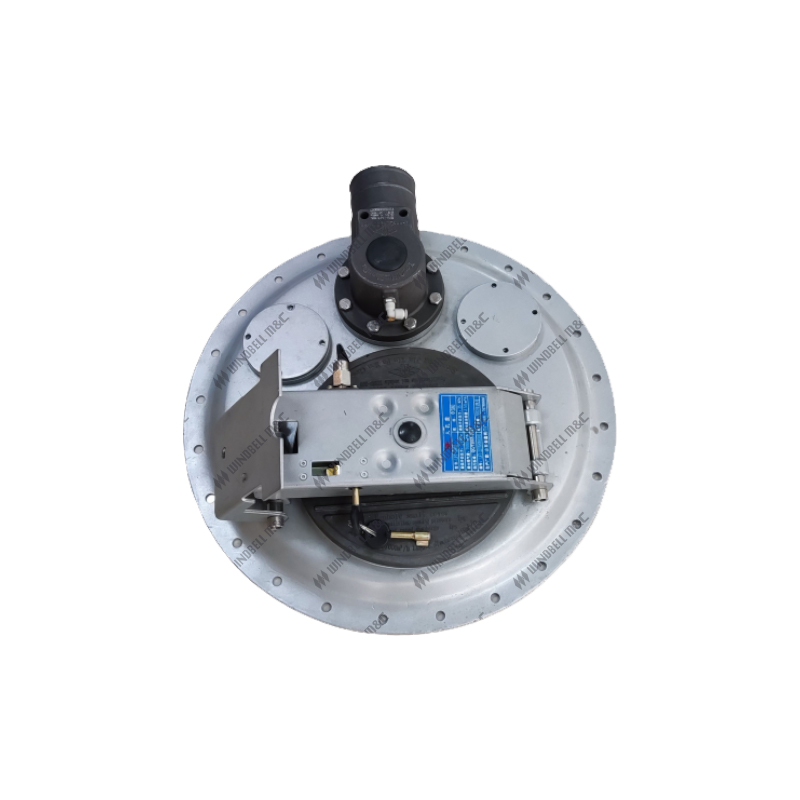

Intelligent Manhole Cover
The intelligent manhole cover is integrated with a switch sensor inside, which can monitor the switch status of the manhole cover in real-time.
-
-
Item Parameters Model WB-SA100 Intelligent API Valve Working voltage 4.5 - 12.6 Vdc Working pressure 0.5MPa Accuracy ≤2L Explosion proof Ex ia IIB T4 Ga Protection grade IP68 Item Parameters Model WB-SH100 Subsea Valve Detector Working voltage 4.5 - 12.6 Vdc Working pressure 1.6MPa Explosion proof Ex ia IIB T4 Ga Protection grade IP68
