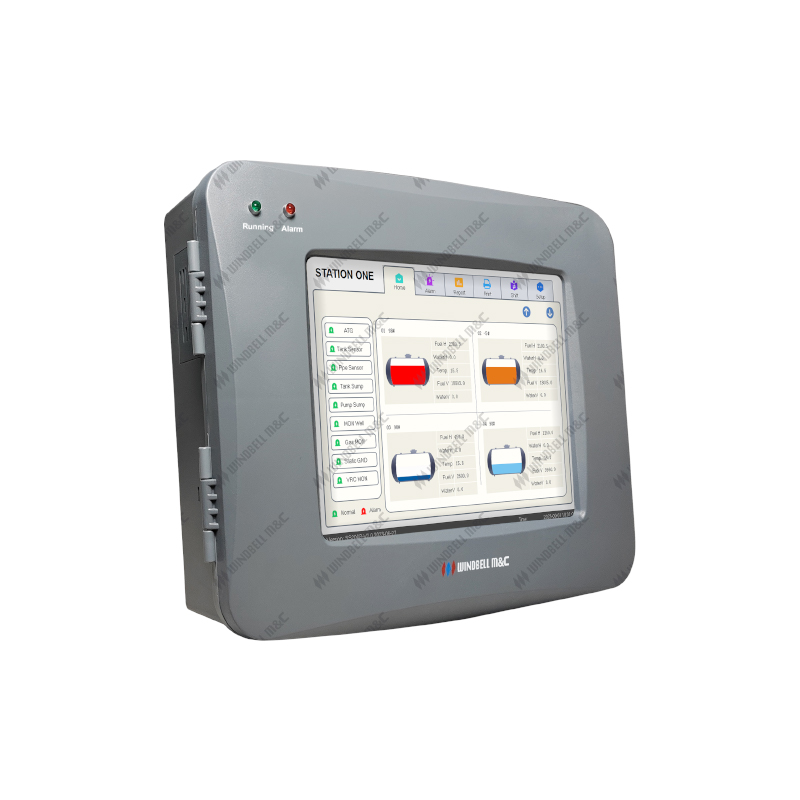

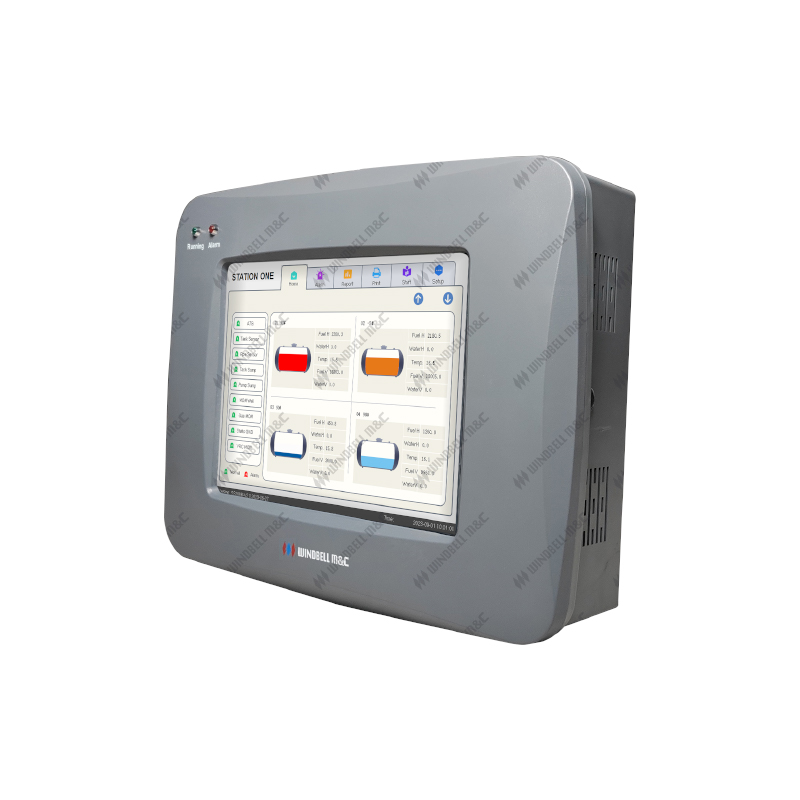

WINDBELL SS200B tank gauge console , with a 12 inch LCD touch screen, can monitor the oil level, water level, density (optional), and temperature information in real-time in the oil storage tank.
SS200B Tank Gauge Console
-
1. Automatically measure the oil level, water level, density (supported by density probes), and temperature of the oil tank, and automatically calculate the storage capacity of the tank.
2. Capable of generating or printing delivery, sales, inventory, and alarm reports, providing gas stations with comprehensive management plans for the delivery, sales, and inventory of oil products.
3. Implement automatic or manual shift handover.
4. Equipped with high and low oil level alarms, pre alarm, high water level alarm, high temperature alarm, oil tank leakage alarm, etc.
5. Can simultaneously monitor multiple oil tanks in real-time (suitable for various types of oil tanks with a diameter of less than 5 meters).
6. Equipped with 2 relay output interfaces, it can be externally connected to an explosion-proof sound and light alarm in the oil tank area.
7. Equipped with RS-485 output interface, it can be externally connected with oil unloading anti overflow device and submersible oil pump anti rotation control device.
8. Equipped with density measurement function, it can be connected to a density liquid level probe to measure oil density, oil level, water level, and temperature in real-time.
9. Equipped with static leak detection function and capable of connecting leak sensors.
10. Supporting environmental sensor input, capable of connecting to double layer oil tank gap leakage detection, manhole well, bottom of fuel dispenser, and groundwater oil and gas monitoring environmental sensors.
11. When a single oil tank is not refueled, it has a anti-theft oil alarm function.
12. Have multi-level password access management.
13.Built in ticket printer with printing function.
14. Adopting standard communication protocols and open communication protocols, it can connect to common gas station management systems, support third-party software entry and secondary development, and be able to upload data in real-time or automatically to relevant business management systems.
15. Support remote monitoring, achieve real-time data query and data summary query on remote computers through the internet.
16. Strong scalability.
17. The product has the advantages of convenient use, stable performance, long service life, easy installation and maintenance, and has the function of self diagnosis of equipment faults.
-
Item
Technical Parameters
Power
AC90~276V(AC120~240V±15%),47~440HZ
Ambient temperature
-20℃~+60℃
Number of tank gauges that can be connected
Basic configuration can monitor 8 oil tanks, up to 32
Display screen
12 inch LCD touch screen
Printer Built-in ticket printer

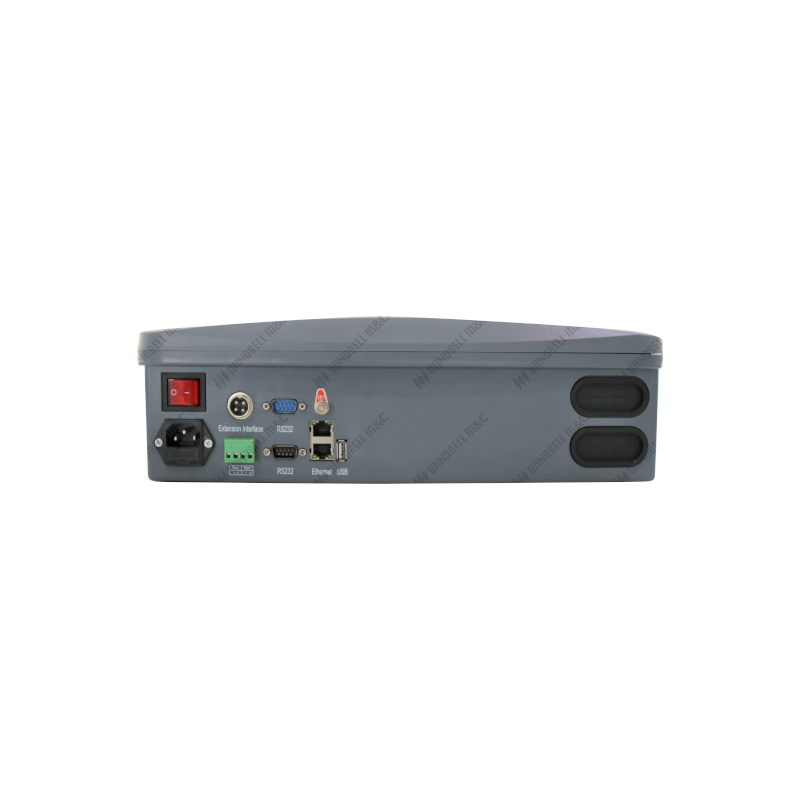

RS-232 port
2
RS-485 port
1
USB port 1
External expansion relay
2 Ethernet port
1, Wired network RJ45, 10/100Mbps 1, Wi Fi, 10/100Mbps Explosion proof
[Ex ia Ga] lIA
Dimensions 42*36*16cm
