The WINDBELL M&C SS200A tank gauge console , with a 8 inch LCD touch screen, can monitor the oil level, water level, density (optional), and temperature information in real-time in the oil storage tank.

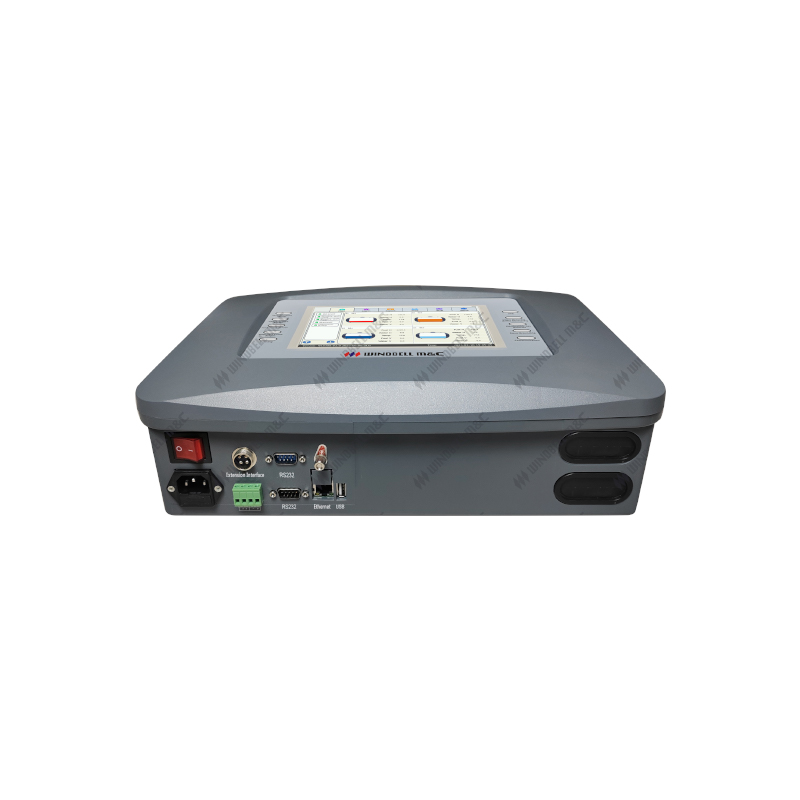

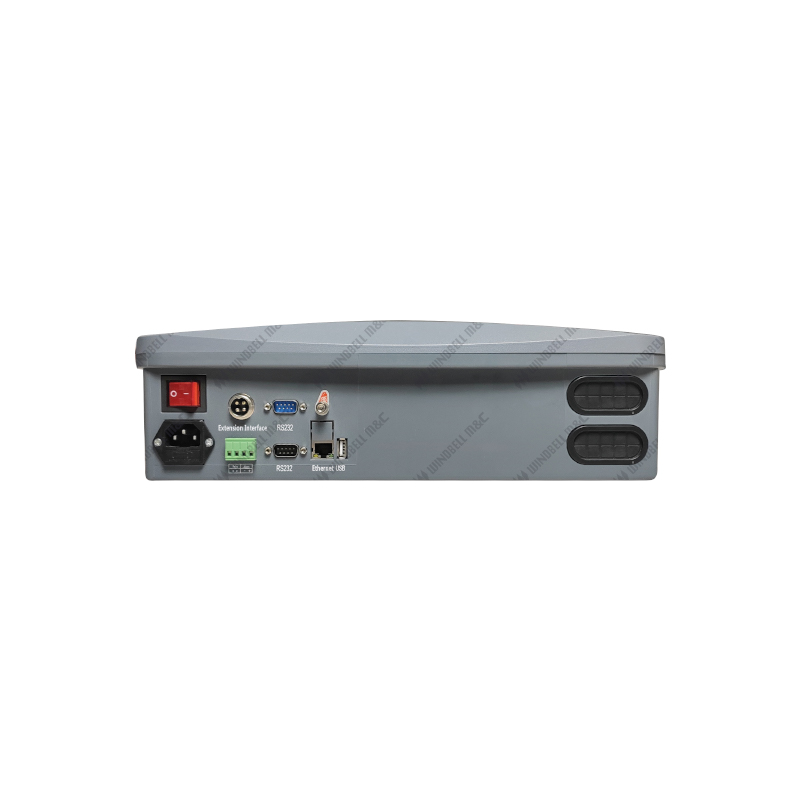

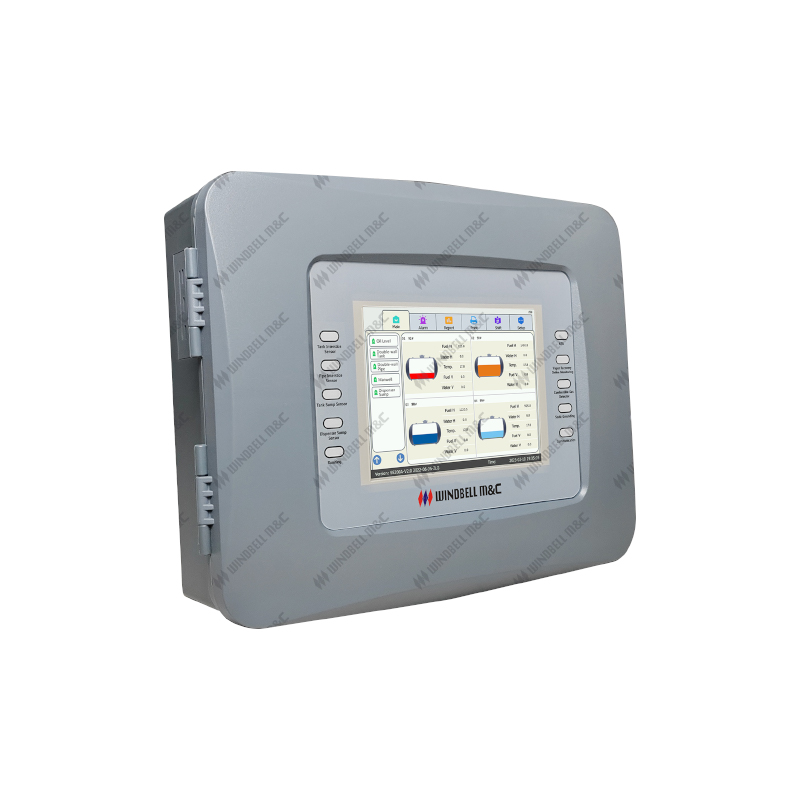

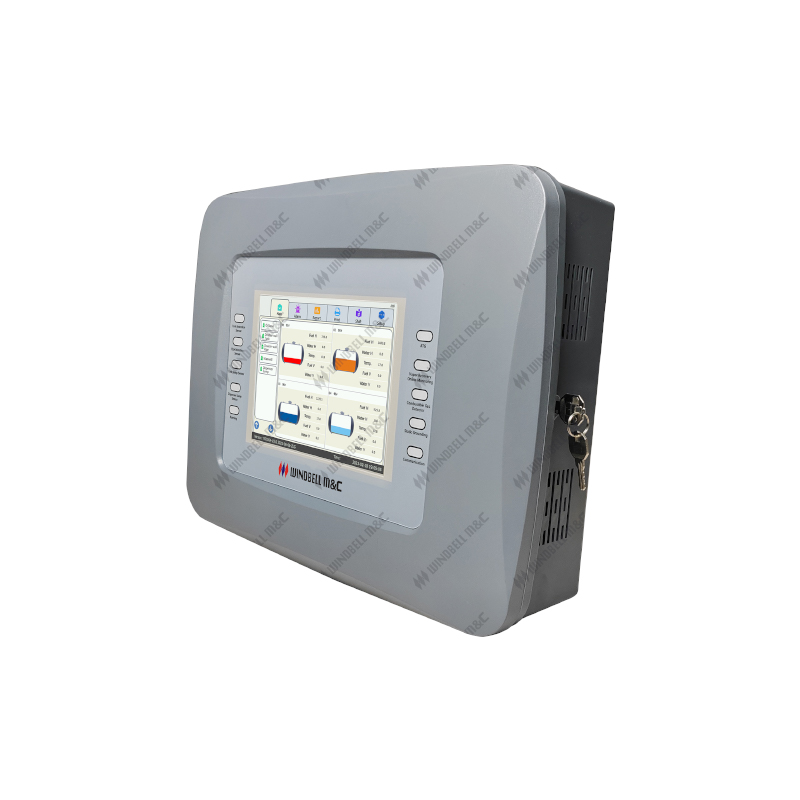

SS200A Tank Gauge Console

CONTACT US
  • 1. Automatically measure the oil level, water level, density (supported by density probes), and temperature of the oil tank, and automatically calculate the storage capacity of the tank.



    2. Capable of generating or printing delivery, sales, inventory, and alarm reports, providing gas stations with comprehensive management plans for the delivery, sales, and inventory of oil products.



    3. Implement automatic or manual shift handover.



    4. Equipped with high and low oil level alarms, pre alarm, high water level alarm, high temperature alarm, oil tank leakage alarm, etc.



    5. Can simultaneously monitor multiple oil tanks in real-time (suitable for various types of oil tanks with a diameter of less than 5 meters).



    6. Equipped with 2 relay output interfaces, it can be externally connected to an explosion-proof sound and light alarm in the oil tank area.



    7. Equipped with RS-485 output interface, it can be externally connected with oil unloading anti overflow device and submersible oil pump anti rotation control device.



    8. Equipped with density measurement function, it can be connected to a density liquid level probe to measure oil density, oil level, water level, and temperature in real-time.



    9. Equipped with static leak detection function and capable of connecting leak sensors.



    10. Supporting environmental sensor input, capable of connecting to double layer oil tank gap leakage detection, manhole well, bottom of fuel dispenser, and groundwater oil and gas monitoring environmental sensors.



    11. When a single oil tank is not refueled, it has a anti-theft oil alarm function.



    12. Have multi-level password access management.



    13. Adopting standard communication protocols and open communication protocols, it can connect to common gas station management systems, support third-party software entry and secondary development, and be able to upload data in real-time or automatically to relevant business management systems.



    14. Support remote monitoring, achieve real-time data query and data summary query on remote computers through the internet.



    15. Strong scalability.



    16. The product has the advantages of convenient use, stable performance, long service life, easy installation and maintenance, and has the function of self diagnosis of equipment faults.

  • Model

    WB-SS200B Smart Console

    Power

    AC90 ~ 276VAC, 47-440HZ

    Working temperature

    -20℃ to 60℃ (-4℉ to 140℉)

    Display

    8-inch color touch screen

    Ex-proof grade

    [EX ia Ga] IIB

    Safety barrier

    GSB06

    Relay output

    2 groups

    External extension anti-overfill valve console

    WB-DFV100

    External extension submersible pump console

    EM02

    Output voltage

    DC 12V

    Monitor probes

    8, Up to 32

    Leak sensor

    Optional

    SMS module

    Optional

    GPRS module

    Optional

    Built-in printer

    Optional

    WIFI function

    No

    External sound-light alarm

    Optional

    External printer

    Support

    Running/Alarm indicator

    Yes

    Inventory and delivery management

    Yes

    Density and mass measurement

    Yes

    RS485 port

    1

    RS232 port

    2

    USB port

    1

    Ethernet port

    1

    Buzzer alarm

    Yes

    Tank table

    Yes, simulate/input/import/export

    Reports

    Inventory, delivery, shift, alarm, leak detection test, system log, SMS for optional

    PC remote software

    PCR200

    Anti-theft function

    Yes

    Dimension (L*W*H)

    42*36*16cm

  • SMS Module
    GPRS Module
    WB-SP600

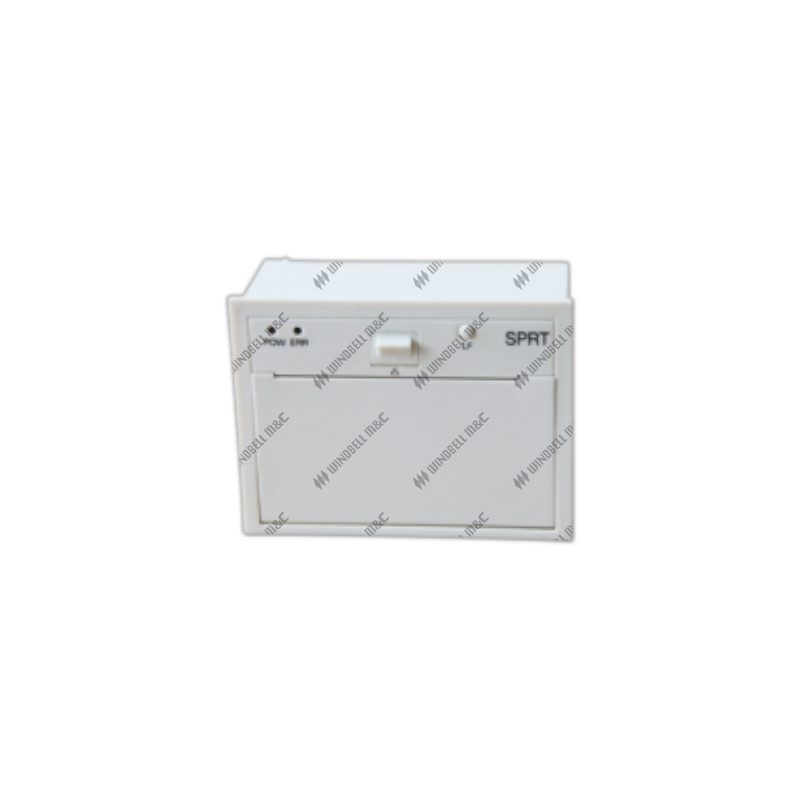

    Built-in Printer
  • WB-SP300
    WB-SP300D
