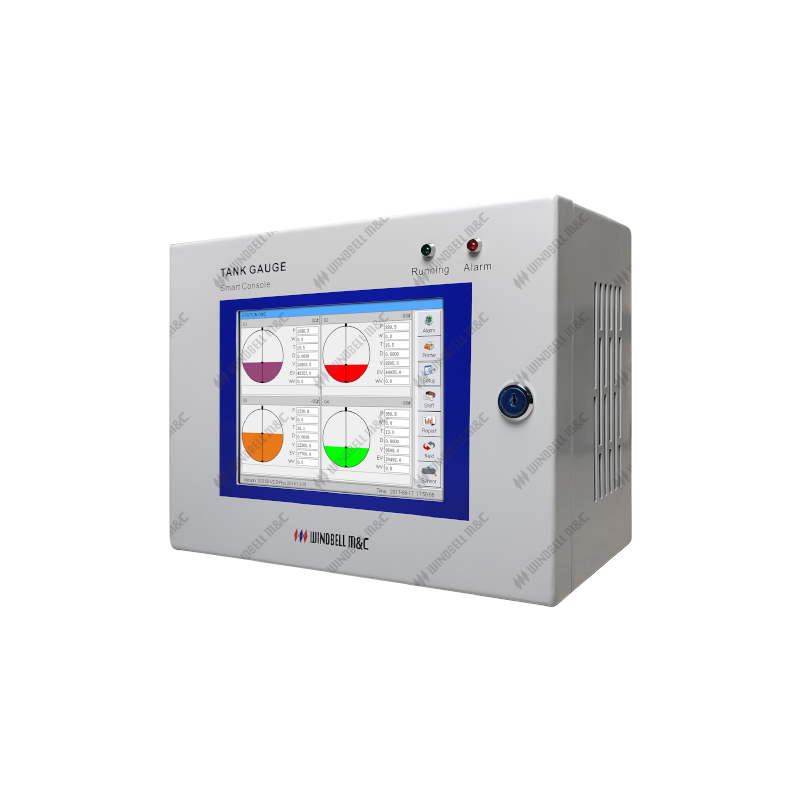

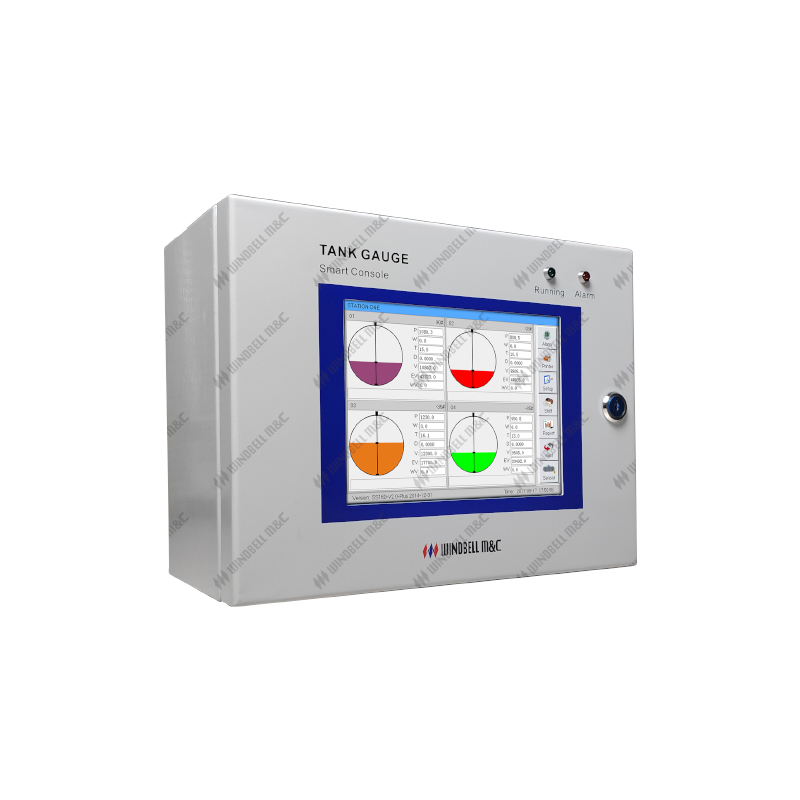

The WB-SS160PLUS smart console is the display terminal of the automatic tank gauge system and can detect 1 to 12 tanks at the same time. It can monitor product level, water level, temperature, product volume, water volume, empty volume, all kinds of alarms, inventory and delivery information in real time.



Together with SP300 series magnetostrictive probe constitute the complete automatic tank gauge system.

SS160Plus Tank Gauge Console

CONTACT US
  • l Automatically measure the fuel level, water level, density (optional), and temperature of the fuel tank, and automatically calculate the tank capacity.

    l Capable of generating and printing delivery, sales, inventory, and alarm reports, providing petrol stations with a comprehensive management solution for the delivery, sales, inventory of fuel.

    l Equipped with shift handover function, it can achieve automatic or manual shift handover.

    l Equipped with high and low fuel level alarms and pre alarms, high water level alarms, high temperature alarms, fuel tank leak alarms, etc.

    l Capable of monitoring multiple oil tanks in real-time simultaneously, suitable for various types of oil tanks with a diameter of less than 5 meters.

    l Equipped with 2 relay port, it can be externally connected to an ex-proof sound and light alarm in the tank area.

    l Equipped with RS485 port, it can be externally connected to the oil unloading anti overflow device and submersible pump controller.

    l It has a static leak detection function and can be connected with a leak sensor to realize the leak monitoring of double-wall oil tanks, double-wall pipelines, tank sump and dispenser sump.

    l When a fuel tank is non-refueling, it has a anti-theft oil alarm function.

    l Equipped with multi-level password access management.

    l Can be connected to an external printer.

    l API interface can be provided to connect to the gas station management system, support access to third-party software for secondary development, and be able to upload data in real-time to relevant business management systems.

    l Support remote monitoring, querying real-time data and summarizing through the internet.

    l Equipped with device fault self-diagnosis function.

  • Model

    WB-SS160PLUS Smart Console

    Power

    AC90 ~ 276VAC, 47-440HZ

    Working temperature

    -20℃ to 60℃ (-4℉ to 140℉)

    Display

    8-inch color touch screen

    Ex-proof grade

    [EX ia Ga] IIA

    Safety barrier

    GSB03,GSB05

    Relay output

    2 groups

    Output voltage

    DC 12V

    Monitor probes

    6, Up to 12

    Leak sensor

    Optional

    SMS module

    Optional

    GPRS module

    Optional

    Built-in printer

    Optional

    WIFI function

    No

    External sound-light alarm

    Optional

    External printer

    Support

    Running/Alarm indicator

    Yes

    Inventory and delivery management

    Yes

    Density and mass measurement

    Yes

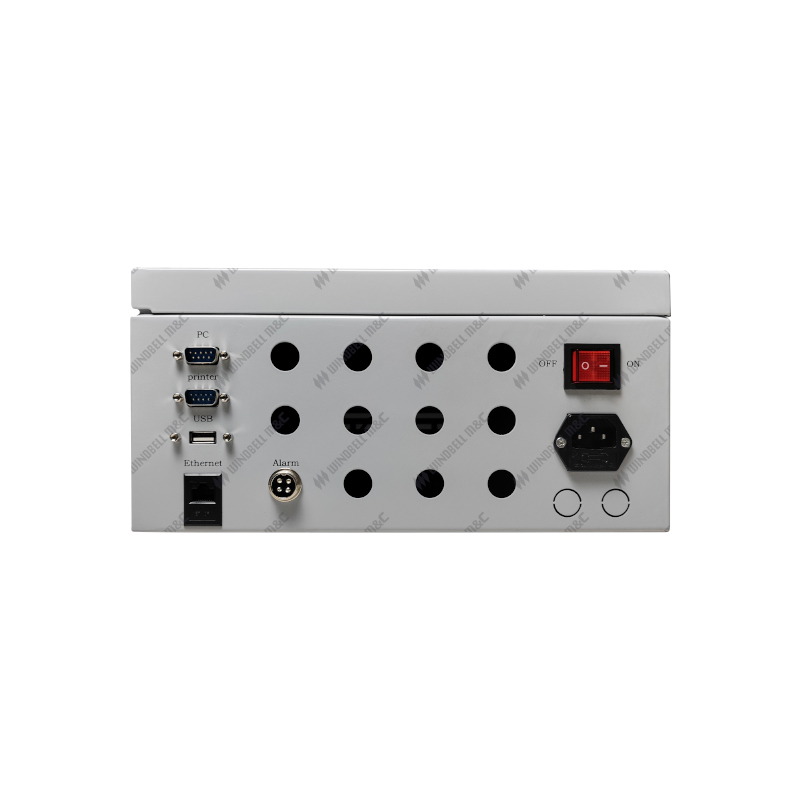

    RS485 port

    1

    RS232 port

    2

    USB port

    1

    Ethernet port

    1

    Buzzer alarm

    Yes

    Tank table

    Yes, simulate/input/import/export

    Reports

    Inventory, delivery, shift, alarm, leak detection test, system log, SMS for optional

    PC remote software

    PCR200

    Anti-theft function

    Yes

    Dimension (L*W*H)

    30*23*14.5cm
