For SP300 probe, different lengths mean different specification.

  For example: SP300-2870, which means the model is SP300, length of probe rod (below probe head) is 2870mm.

The selection of probe length as below:

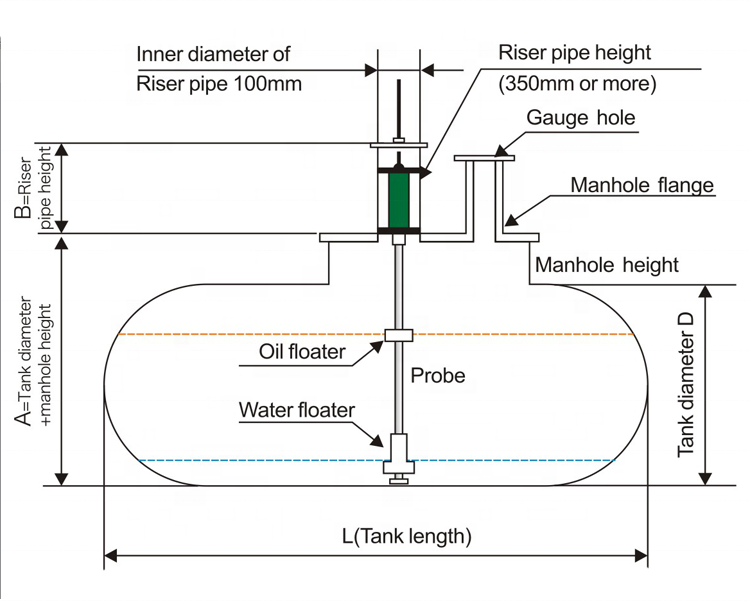

  Probe length = A + 30 mm

  A = Tank diameter (height) + manhole height, so it is the height from manhole cover to tank bottom.



Probe Selection

All the tank level gauge probes are almost customized for tank dimension,

so it is very inportant to offer us the correct information when order.
