Windbell SP series magnetostrictive probe take advantage of Wiedemann effect, Villari effect and Ultrasonic effect of intelligent material, by measuring time value difference which can be easily measured with high-precision, to convert to displacement difference, can accurately measure the product level, water level, and temperature for individual tanks.

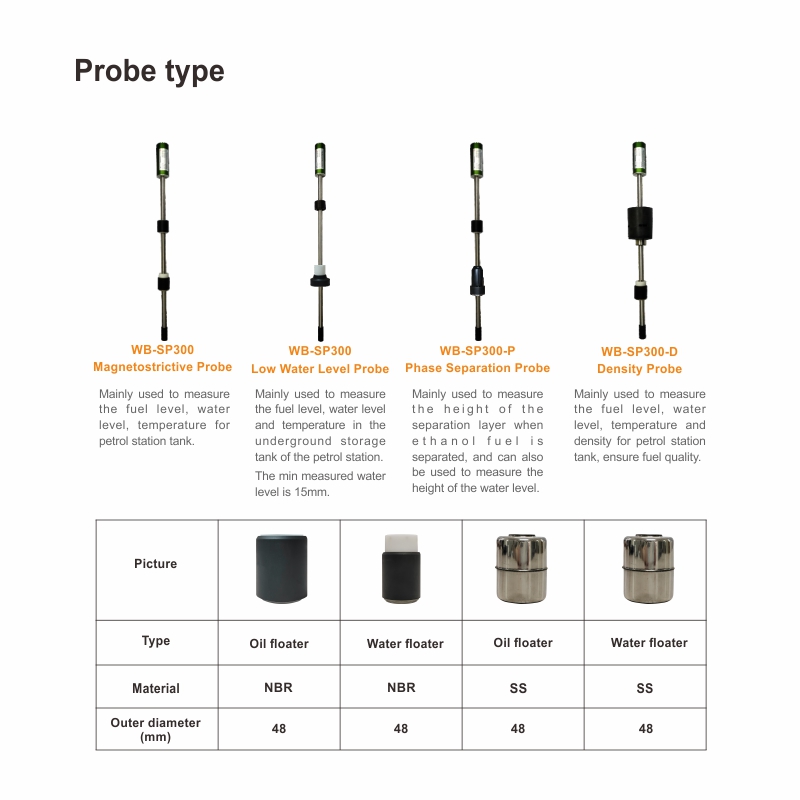

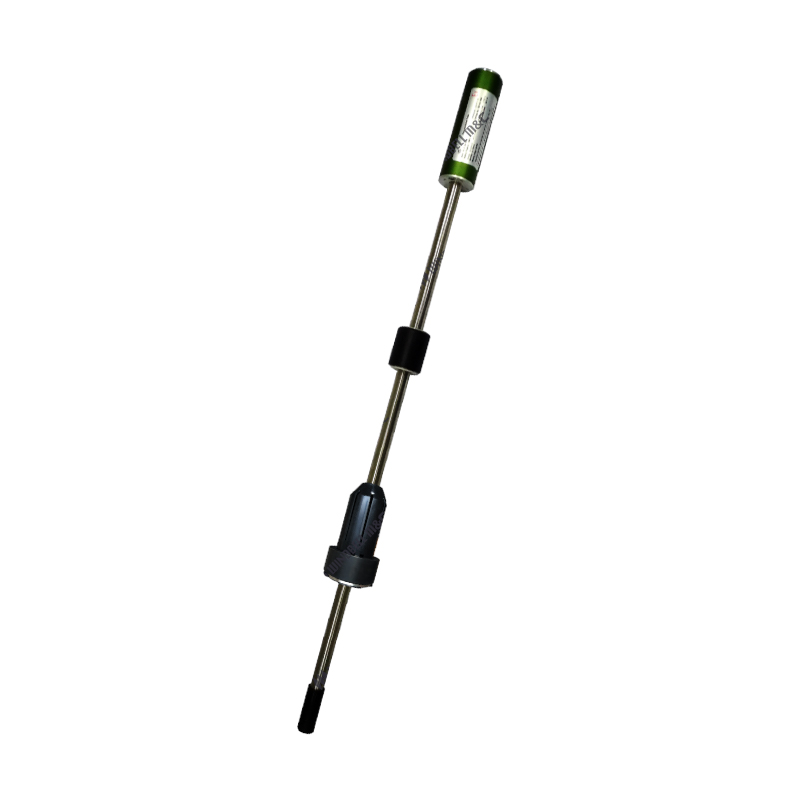

SP300 Magnetostrictive Probe

CONTACT US
  • Feature

    1. Real time data transmission.

    2. Five-point temperature sensing.

    3. Digital signal transmit with anti-interruption ability.

    4. Maximum communication distance: 1200m.

    5. Level Precision±0.5mm and resolution ±0.01mm.

    6. Temperature Precision 0.2℃ and resolution 0.0625℃

    7. Leak Detect function: Standard--- 0.38L/H or 0.76L/H.

    8. More reliable, environment friendly, could be used in torrid climate and freezing climate.

    9. Non-corrosion 316 stainless steel ensure longer lifetime in most petroleum products.

    10. Trouble-free, easy to install and operate.

    11. IP68 protection grade.









  • Parameters



    Model

    WB-SP300 Series Magnetostrictive Probe

    Precision

    ±0.5mm

    Repeatability

    ±0.1mm

    Resolution of fuel level

    0.01mm

    Resolution of water level

    0.01mm

    Points of TEMP. measured

    5

    Resolution of temperature

    0.0625℃

    Accuracy of density measurement

    +/-1kg/m³

    Density measure range

    700-780kg/m³, 810-890kg/m³

    Communication mode

    RS485

    Maximum communication distance

    1200m

    Communication cable

    4-core shielded cable

    Rated working pressure of probe

    1.6MPa

    Material

    316L stainless steel

    Protection grade

    IP68

    Operating temperature range

    －40℃～60℃ (-40℉ to 140℉)

    Mark of explosion proof

    Ex ia IIA T4 Ga, Ex II 1G Ex ia IIA T4 Ga





    Associated apparatus

    WB-GSB03, GSB06, GSB08 safety barrier

    Definition of power cable

    BLUE: POWER+, BROWN: RS485A, WHITE: RS485B, BLACK: POWER-
    Applicable medium Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil

    Installation method

    Flange type, Threaded type

    Reliability

    Anti electromagnetic interference, anti surge
