HOME > PRODUCTS > Safety And Environment Monitor > Oil Vapor Concentration Sensor
The WINDBELL GTYQ-WB500 series oil vapor concentration sensor are manufactured using high-performance gas sensing components and microcontroller technology, combined with advanced SMD technology.
Widely used for oil vapor detection in petrol stations, refineries, chemical plants, and other places that may produce combustible gases in the petroleum and petrochemical industries.

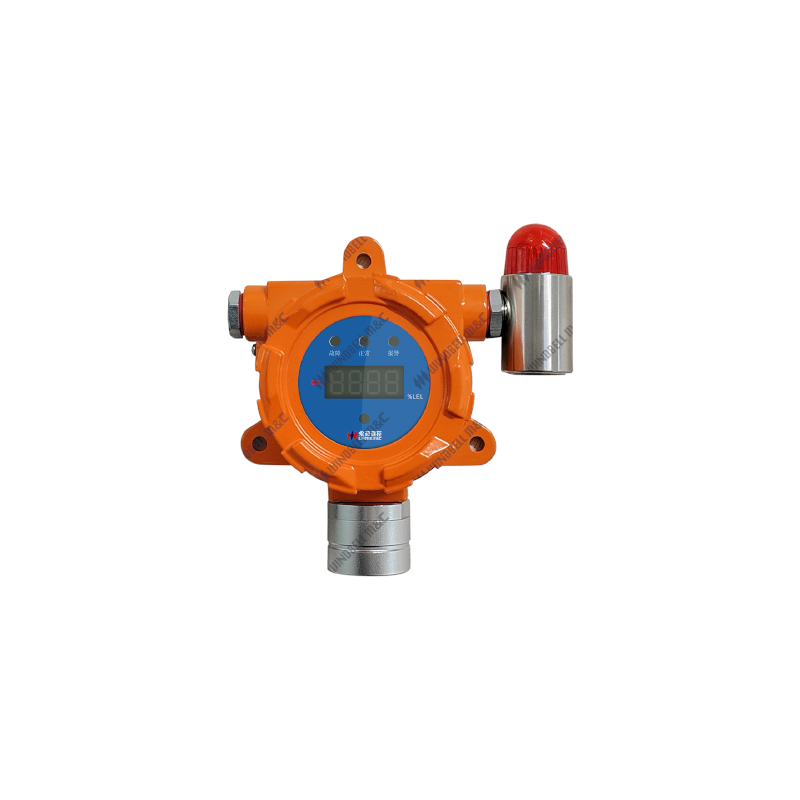

Oil Vapor Concentration Sensor
They have various functions such as automatic temperature compensation and zero correction, as well as good repeatability and temperature and humidity characteristics, as well as long service life and easy operation.
Item ParametersDetection principleCatalytic combustion typeSampling method Natural diffusion Working voltage AC220V/ DC24V Consumption ≤3W Measurement range 0-100%LEL Accuracy +/- 3%LEL Response time ≤30s Working temperature -40℃ to +60℃ Alarm mode Sound-light alarm Working mode Continuous detection Display mode LED digital tube Operating mode Infrared remote control Ex-proof grade Ex db IIC T6 Gb Protection grade IP66 Output signal 4-20mA / RS485 / Lora Transmission distance ≤ 500m Service life 3 year
