The upgraded version of volume measurement method -- "WB-LWGY50 high-precision oil flow-meter + intelligent data processor" volume measurement method can calibrate tank volume after once unloading process of gas station.

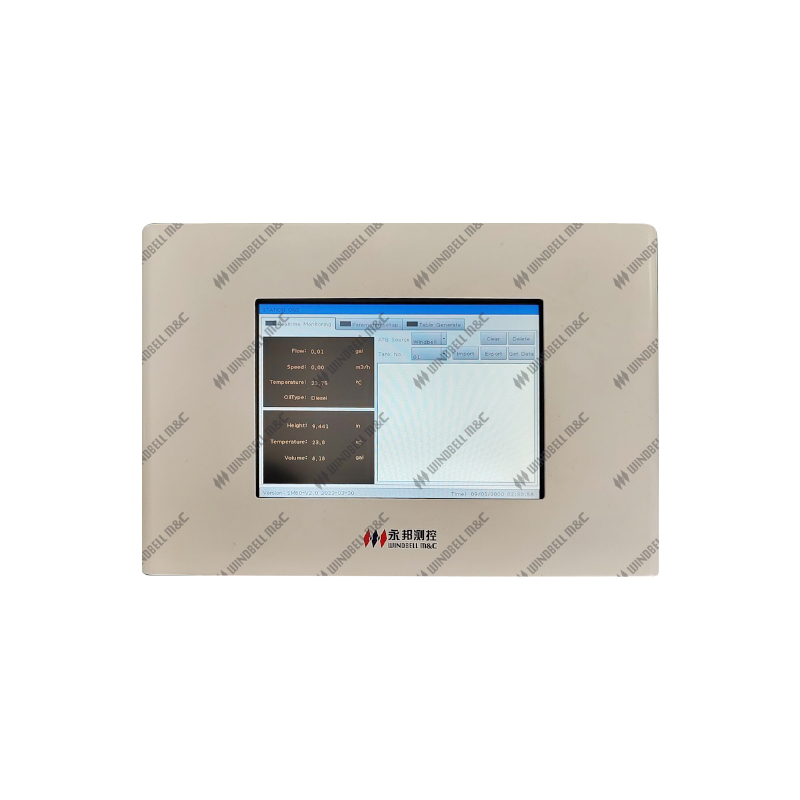

By calling the discharge data of the flow-meter and the multiple groups of data of the height increment of the ATG, the intelligent data processor SM60 can generate accurate volume table.
Flowmeter
-
· Tank volume table accuracy less than 0.25%.
· No need to clear tank, saving cost.
· Automatic collect discharge data and fuel height.
· Generate new volume table as soon as finish discharge.
· Automatic temperature compensation calculation.Item
Technical Parameters
Apply mediumGasoline, Diesel Accuracy Less than 0.25%Display screenFlow meter:128*64 OLEDData processor SM60: 800*600 touch screenFlow range6-40m³/HFlow meter accuracy+/- 0.1%Temperature accuracy+/- 0.1℃Explosion proofEx ia IIA T4 GaProtectionIP68 Flow meter port sizeDN50 Apply tank typeHorizontal tank, vertical tank, spherical tank, cube tank, cuboid tankApply tank capacity≥12m³ (12000Liters / 3200Gallomn)
