The density probe can accurately measure the fuel level, water level, temperature and fuel density for fuel storage tanks.

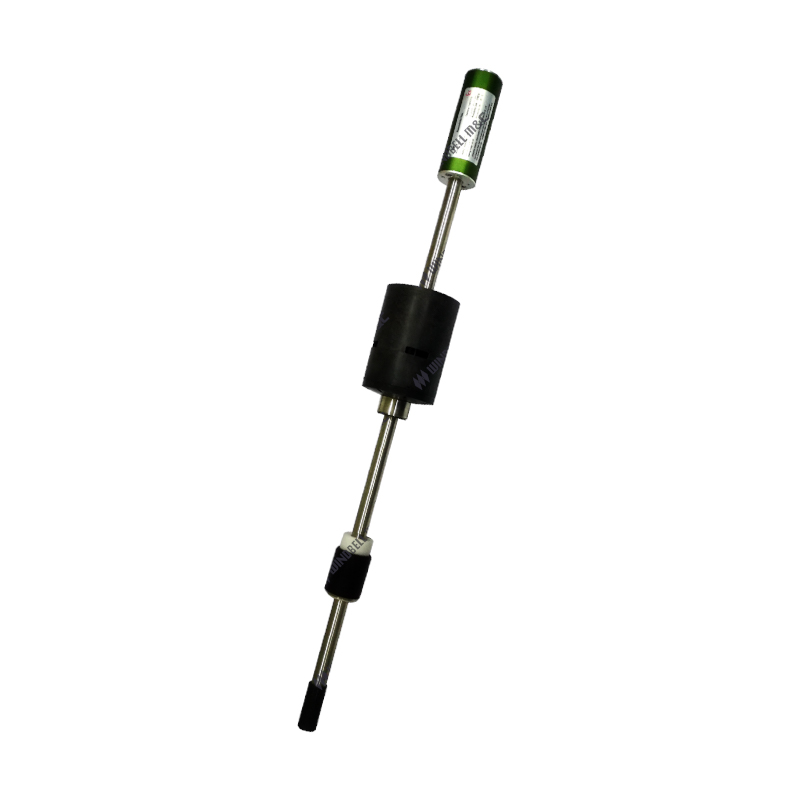

SP300D Magnetostrictive Density Probe

CONTACT US
  • Feature

    This function is based on the hydrostatics principle that the weight of liquid displaced by an object is equal to the weight of the object itself.



    1. Maintain inventory control and in-tank leak detection functionality.

    2. Density measurement with high precision as ±0.5mm and reliable performance.

    3. Detect your substandard fuel and protect your investment and your reputation.

    4. Cost-effective and strong practicality.

    5. Compact structure, save space.

    6. Easy installation and free maintenance.







  • Parameters

    Model

    WB-SP300 Series Magnetostrictive Probe

    Precision

    ±0.5mm

    Repeatability

    ±0.1mm

    Resolution of fuel level

    0.01mm

    Resolution of water level

    0.01mm

    Points of TEMP. measured

    5

    Resolution of temperature

    0.0625℃

    Accuracy of density measurement

    +/-1kg/m³

    Density measure range

    700-780kg/m³, 810-890kg/m³

    Communication mode

    RS485

    Maximum communication distance

    1200m

    Communication cable

    4-core shielded cable

    Rated working pressure of probe

    1.6MPa

    Material

    316L stainless steel

    Protection grade

    IP68

    Operating temperature range

    －40℃～60℃ (-40℉ to 140℉)

    Mark of explosion proof

    Ex ia IIA T4 Ga, Ex II 1G Ex ia IIA T4 Ga





    Associated apparatus

    WB-GSB03, GSB06, GSB08 safety barrier

    Definition of power cable

    BLUE: POWER+, BROWN: RS485A, WHITE: RS485B, BLACK: POWER-
    Applicable medium Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil

    Installation method

    Flange type, Threaded type

    Reliability

    Anti electromagnetic interference, anti surge
  • Related products

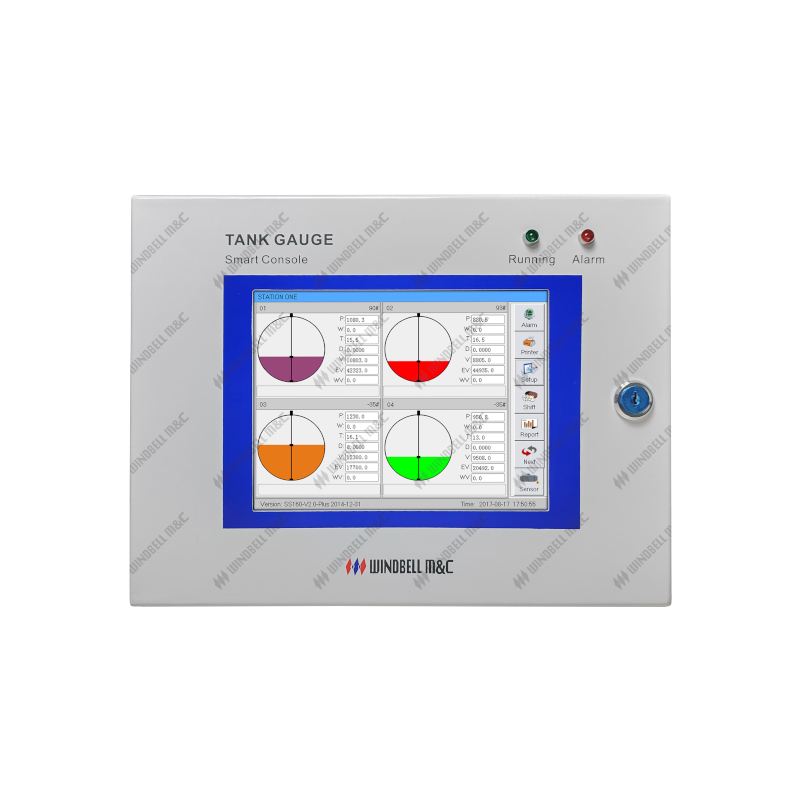

    WB-SS160Plus

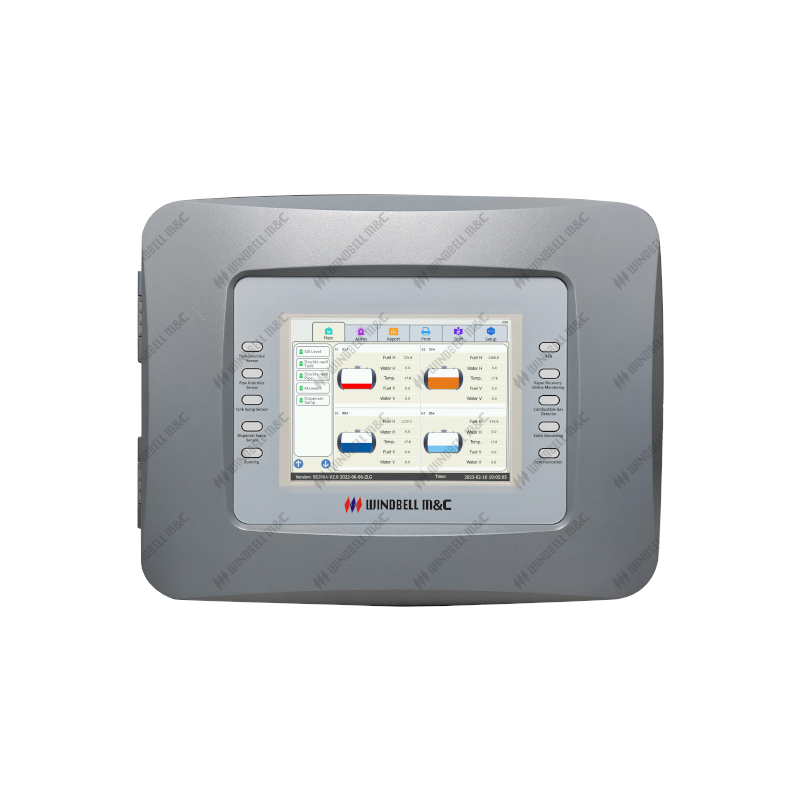

    WB-SS200A

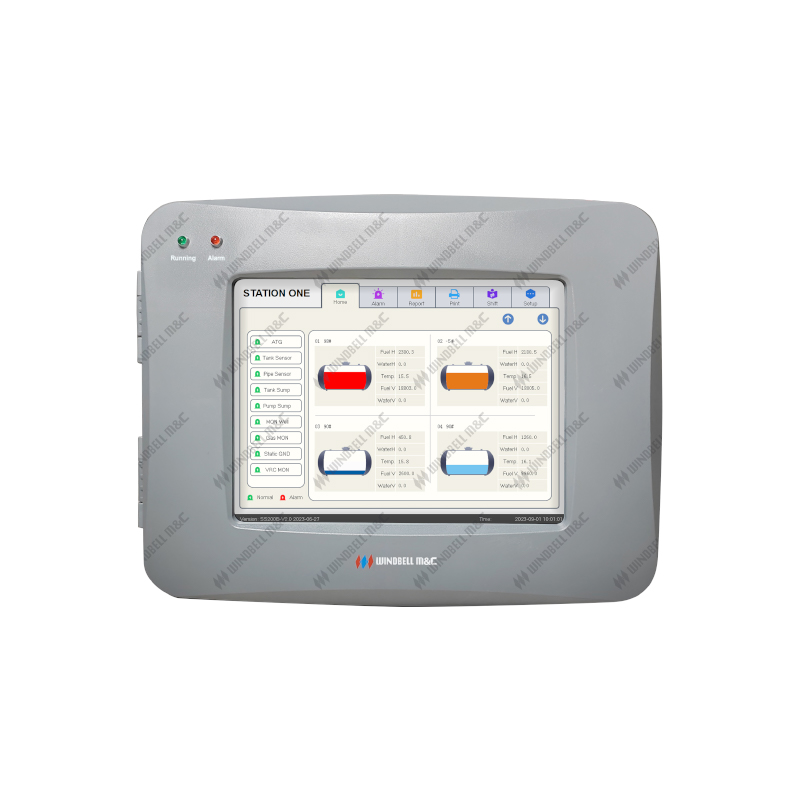

    WB-SS200B
