The WB-CZ100 data acquisition equipment is composed of a data acquisition and processing module, a 4G module, a Beidou/GPS position information module, a power module, etc. Used to provide intrinsically safe power supply to various sensors, collect and store vehicle installation equipment data, fuel stabilization and unloading prompts, and transmit real-time data and status to the platform system through 4G wireless means.
Vehicle Data Acquisition Device

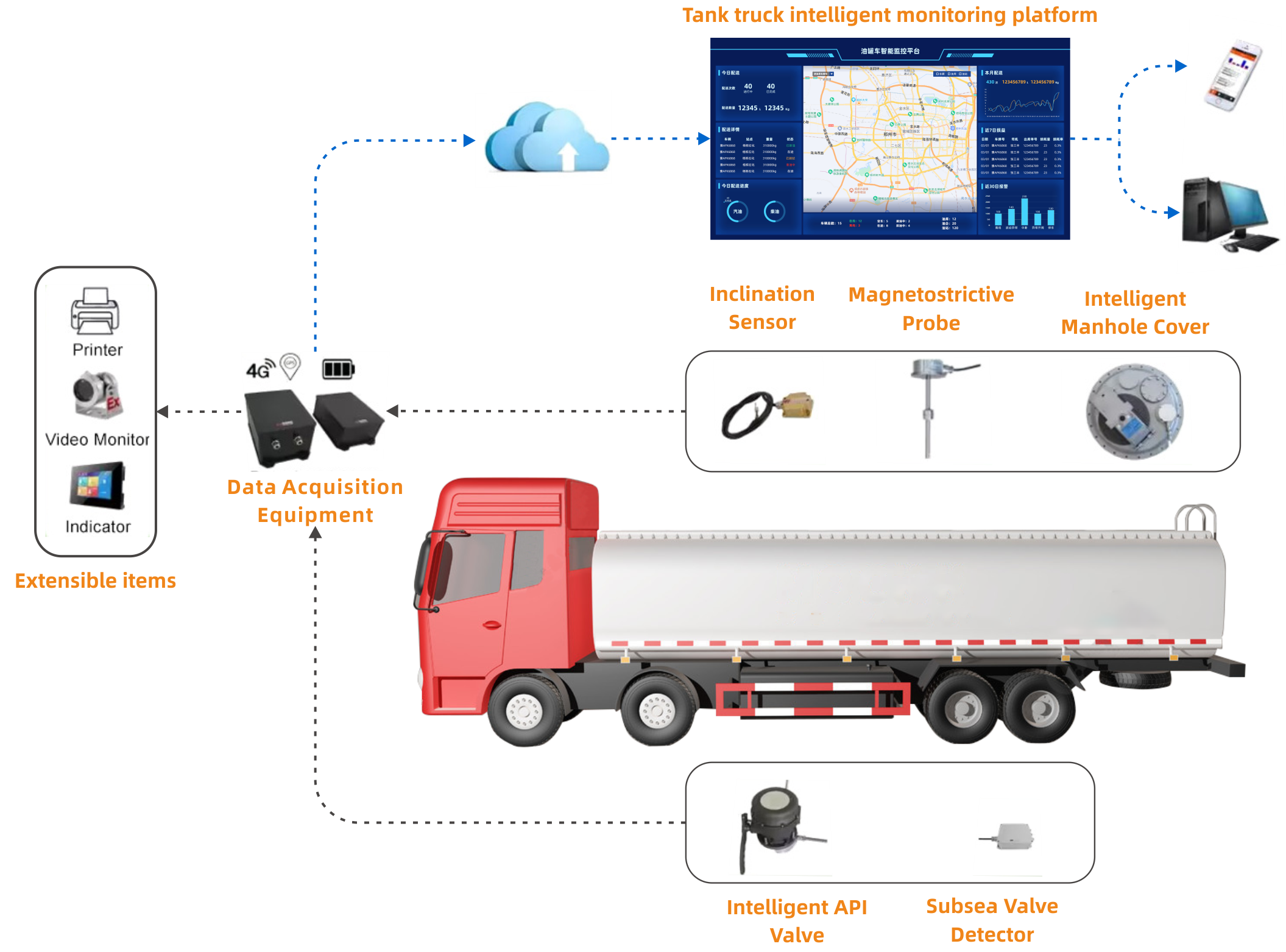

The WB-CZ100 vehicle data acquisition device is specifically designed for the management needs of tank truck transportation vehicles, integrating liquid level monitor and oil management. It supports the integration of sensors such as automatic tank gauges, inclination sensors, intelligent API valves, and subsea valve detector. Collect and store vehicle installation equipment data, fuel stabilization and unloading prompts, and transmit real-time data and status to the platform system through 4G wireless means.
Item Parameters Model WB-CZ100 Vehicle Data Acquisition Device Working voltage 8-35Vdc Working temperature -40℃ to +85℃ Working current < 300mA Communication log storage Equipped with communication log storage function, supporting storage for ≥ 10 days Blind spot supplementary transmission Support Power supply
Equipped with power supply, the power supply supports the system's working time ≥ 24 hours
Data collection density ≤1s Communication protocol RS485 Communication network 4G Ex-proof grade [Ex ia Ga]ⅡB Protection grade IP68
