WB-SP300NS AdBlue magnetostrictive probe is specially designed for chemical storage tank, can accurately measure product level and temperature for individual tanks. Available for AdBlue.

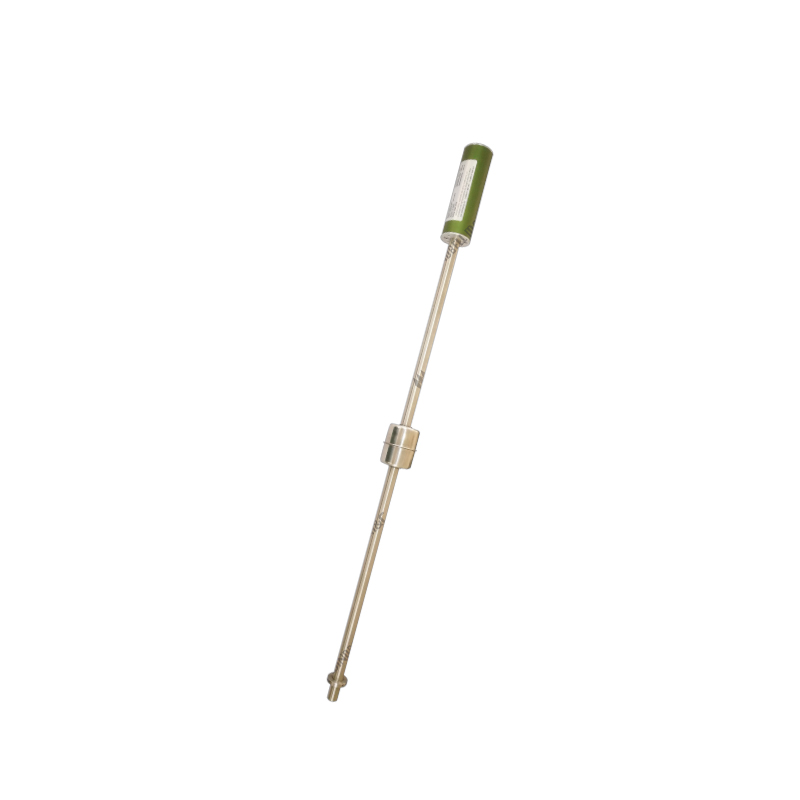

SP300NS AdBlue Magnetostrictive Probe

CONTACT US
  • Feature

    The probe consist of SS floater kits, casing tube, flange, measuring rod, SS316L protection tube and probe head.



    · Real time data transmission.

    · Five-point temperature sensing.

    · Digital signal transmit with anti-interruption ability.

    · Maximum communication distance: 1200m.

    · High percision as 0.5mm and resolutino as 0.01mm.

    · Leak detect function: Standard -- 0.38L/H or 0.76L/H.

    · More reliable, environment friendly, could be used in torrid climate and freezing climate.

    · Non-corrosion 316 stainless steel ensure longer lifetime in most petroleum products.

    · Trouble-free, easy to install an operate.

    · IP67 protection grade.



     Type  Product floater
     Material  SS
     Size  φ57*71



  • Parameters

    Item

    Technical Parameters

     Model

     SP300-NS

     Working voltage

     12V DC

     Accuracy

    		  +/-0.5mm

     Resolution

    		  0.007mm
     Repeatability  +/-0.1mm

     Explosion-proof mark

    		  Exia IIA T4 Ga

     Working temperature

    		 -40 to 60℃
     Temperature accuracy  +/-0.2℃

     Temperature sensor

    		  5
     Communication distance  1200m
     Associated apparatus

     GSB03 safety barrier
